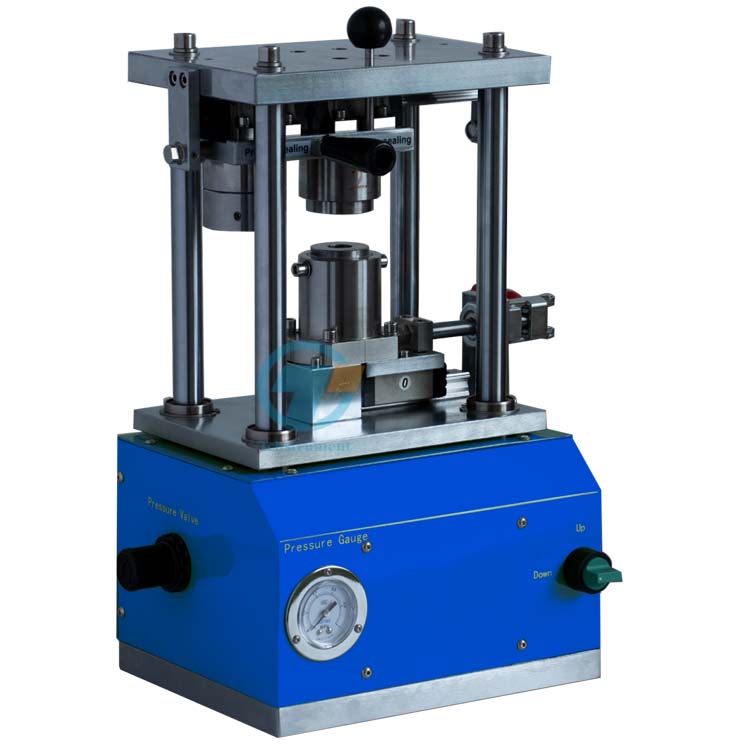

This pneumatic crimping machine is driven by a cylinder to realize the packaging process for the cylindrical battery. The standard configuration mold can be used for the sealing of 18650 batteries. After replacing the mold, other cylindrical batteries (such as 26650) can be sealed.
Specification:
Feature
· Compact and lightweight, it can be conveniently placed in a glove box through the front window.
· The sealing die is driven by a pneumatic cylinder with adjustable pressure.
· Compressed dry air or inert gas cylinders can be used ( buy Ar gas is preferred to keep glovebox atmosphere purity )
· The pressure gauge is built in the crimper to keep the pressure consistent.
· The standard cropping die of 18650 is included for immediate use. If you need other dies, such as 21700, or 21650, please let us know in advance. (not suggest that customer change the die by themselves)
· The pure pneumatic operation, no electricity, easy to use
Sealing Pressure
Manual valve control, maximum pressure 1MPa, recommended pressure 0.7MPa, accuracy ±0.5%
Sealing Stroke
30mm
Crimping Dies
Six standard die selectable: CR123 /18650 / 21700/ 26650 / 32650 / AA /AAA
Compressive Gas
· Inert Gas Tank or Air Compressor (0.7~1Mpa) is needed for the machine operation, please purchase separately.
· Must use high purity inert gasses (Ar or N2) when operating inside the glovebox.
· For the operation outside the glove box, you may use Air Compressor. ( not included)
· Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Warranty
· One year limited with lifetime support
· Parts rusted without regular cleaning and maintenance are not covered
(the standard die is 18650)
