Features

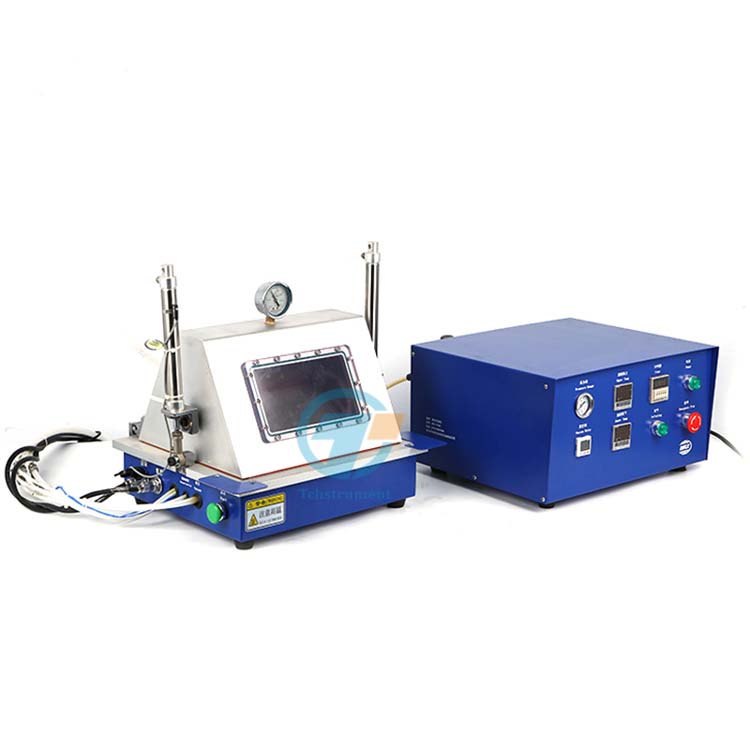

Sealing Mode (Top,Side  and vacuum ):

        · It is designed with with Rubber Sealing blade and Manual Footswitch is specially designed for hot sealing the top side of the pouch cell with the tab extruded. Unlike hard type sealing blade, the soft type sealing blade is able to eliminate the sealing gap caused by the battery taps.

        · Vacuum Sealing Mode: After electrolyte injection, The device will perform the final vacuum sealing for the pouch cell.

         · Vacuum Standing Mode: Before the vacuum sealing,  The device can do the vacuum standing for the electrolyte diffusion and degassing. The vacuum timer would be used for standing time control.

Max. Sealing Dimensions

200mm(L) x 150mm(W)

( also can be designed according to your need, we can design it with 400mm width max.)

Edge Sealing Width

5mm

Sealing Blade

Soft type (with rubber, suitable for sealing the case with the tab in between)

Power Supply

 208-240V selectable, Single Phase 50/60Hz

Max. Power

600W

Vacuum Level

        · -90 kPa Max.

        · The vacuum pump is not included. Please click here to order at extra cost.

         · If you have your own pump with KF25 PORT, Barbed fitting to KF-25 Adapter is included for immediate use.

Sealing Pressure

         · 0~7Kg/cm² adjustable: Vacuum chamber lid and sealing die to need to be driven gas, Recommended driven gas pressure 60 psi.

        · Please use high purity inert gasses (Ar or N2), when operating in the glovebox. Using Air Compressor driven when operating outside the glove box.

         · Air Compressor and fitting are not included. please click here to order or order from your local hardware store. Gas/Air tube size is 6.

        · Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.


Sealing Temperature

50 - 250°C adjustable with control accuracy of  +/-2°C

Heating Timer

0 - 99 seconds Adjustable

Glove Box Compatibility

         · KF40 Feedthrough with all necessary wire and tube are included to allow operating inside Glovebox, which has a KF40 port

        · Please use Inert gas when operating in the glovebox.

        · Such a Feedthrough ensures air-tightness of glovebox

         · Attention: High purity inert gasses and Vacuum Pump are necessary for operating the Vacuum Sealer, please order them from the related products below.

Compliance

          CE Certified

Warranty

One Year limited warranty with lifetime support
