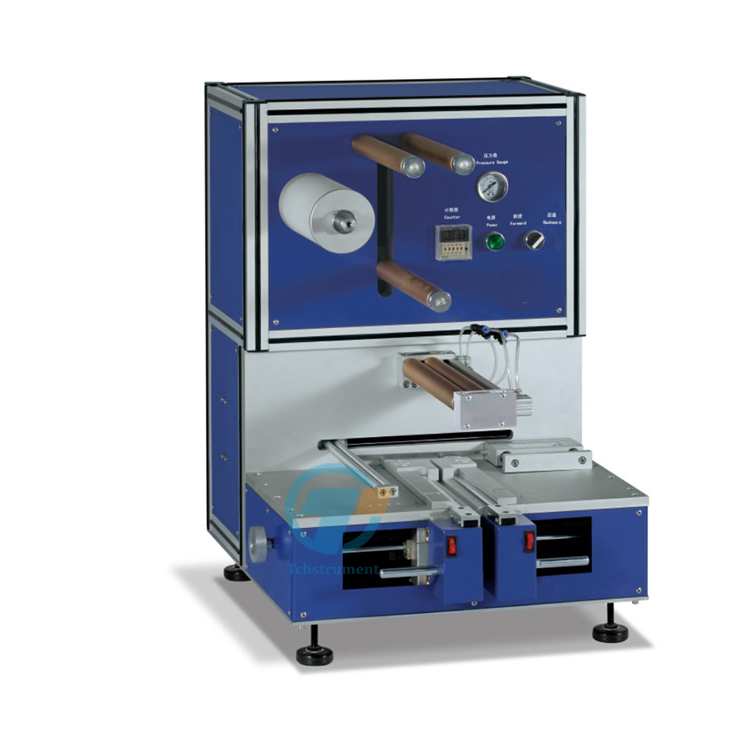

Features

        · Consistent tension controls for separator film delivery

        · "Z" fashion stacking with a separation via a foot-switch

        · Manually slidable fixtures enable accurate positioning and compactness of electrodes

        · Unreeling rotors for separator film feeding adjusting fixture position

         · Can accept the various size of the electrode

         · Automatic counting & zeroing for the numbers of the stack

        · The compact size enables the operation inside a glove box

Working Voltage

AC220V 50/60Hz

Power

200 W

Stacking Electrode Size

· 180mm  x 150mm Max.

· 180mm = electrode length + tab length

· 44mm x 44mm Standard. Range is highly adjustable.

Max. Electrode Thickness

Piled up thickness < 9mm

Aligning Accuracy

±0.3mm for stacked electrodes

Acceptable Separator Roll Size

220mm O.D Max.

Slidable Electrode Fixture

Two slidable fixtures ensure a compact, tight electrode stacking

Electrode Tongs

One electrode tongs are included for easy electrode pick-up

Suggested Air Pressure

0.6 - 1.5 MPa
 (Air compressor is not included in the standard package. )
Attention: If a gas cylinder is used instead of an air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.

Net Weight

about 50Kg

Shipping Weight & Dimensions

325 lbs, 48"x40"x36"

Warranty

        · One Year limited warranty with lifetime support

        · Rusting and damage due to improper storage condition or maintenance are not covered by warranty
