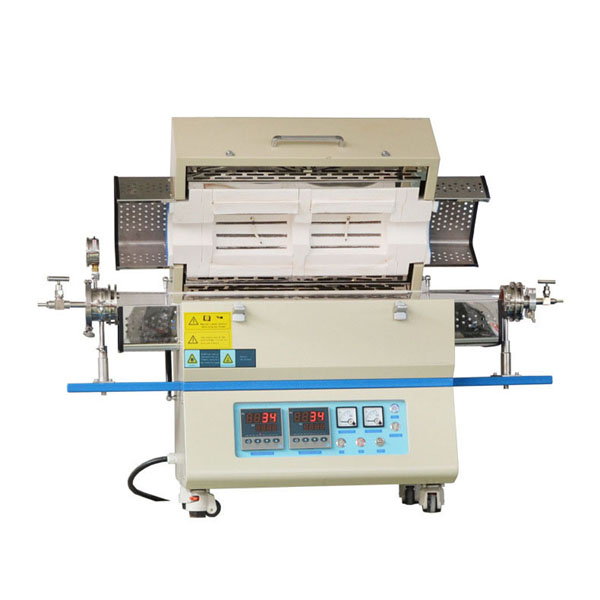

Model |
TCHTL1200-II-60 |
TCHTL1200-II-80 |
TCHTL1200-II-100 |
TCHTL1200-II-150 |
|
Tube size |
Φ60X1000mm |
Φ80X1000mm |
Φ100X1000mm |
Φ150X1000mm |
|
Power (KW) |
3.6 |
3.6 |
3.6 |
5.2 |
|
Dimension |
1140X460X695mm |
1140X460X695mm |
1140X460X695mm |
1110X530X647mm |
|
Heating zone |
205mm+205mm |
|||
|
Max. Temp. |
1200℃ |
|||
|
Working temp. |
≤1100℃ |
|||
|
Heating elements |
resistance wire |
|||
|
themocouple |
K type |
|||
|
Tube material |
High purity quartz tube |
|||
|
Heating rate |
20℃/min max. suggest：≤10℃/min |
|||
|
voltage |
220V, 50/60HZ |
|||
|
Temp. controller |
FA-YD518P-AG temperature controller included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 / PC communication port MET Certified |
|||
|
Vacuum sealing |
One pair of stainless steel vacuum flange is included in the package. Two pairs of fibrous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating) |
|||
|
Vacuum level |
10^-2 torr by a mechanical vacuum pump. |
|||
|
Warranty |
One year limited warranty Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty |
|||
|
compliance |
CE Certified |
|||
