Model

TCHTL1200-I-60

  TCHTL1200-I-80

  TCHTL1200-I-100

Power

3.5  KW

   3.5KW

   3.5KW

Tube size

(OD*Length mm)

Dia 60 X1000

 Dia80X1000

Dia100X1000

Dimension(mm)

580X420X565

580X420X565

580X420X565

Voltage

220V

Tube Material

high purity quartz

Phase

single phase

Heating element

resistance wire

Temp. controller

·  The FA-YD518P-AG temperature controller is included.

· Proportional–integral–derivative control (PID control) and auto-tune function

· 30 segments programmed with ramping, cooling and dwelling steps

· Built-in over-temperature alarm and thermocouple failure alarm

· +/- 1 ºC temperature control accuracy

· Default DB9 PC communication port

Chamber material

1, high-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2, using Japanese technology to form.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.

Controller accuracy

 +/- 1 ℃

SCR

106/16E from German

Max. temperature

 1200 ℃

Working temp.

 1150 ℃

Heating rate

 ≤30 ℃/ Min

Suggest heating rate

≤15  ℃/ Min

Thermocouple

K type

Heating zone length

400mm

Constant heating zone length

150mm

Vacuum pump

               vane rotary vacuum pump and turbo pump are optional

Surface temperature

≤45℃

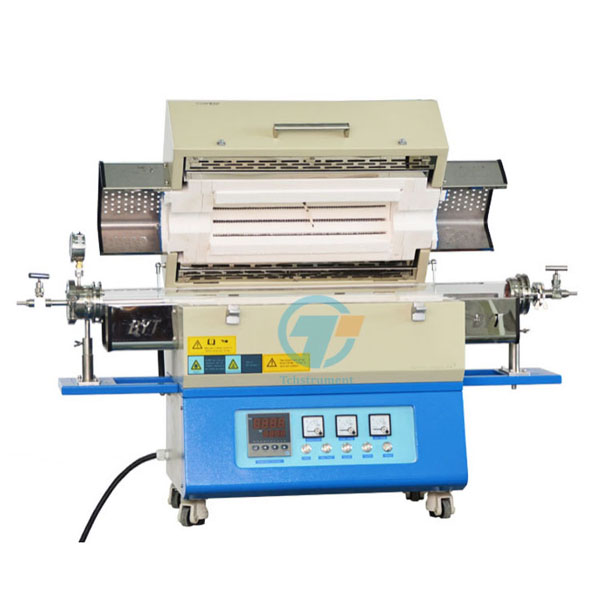

Open cover protection system

 When the furnace cover is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of the user.

Warranty

One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty)
