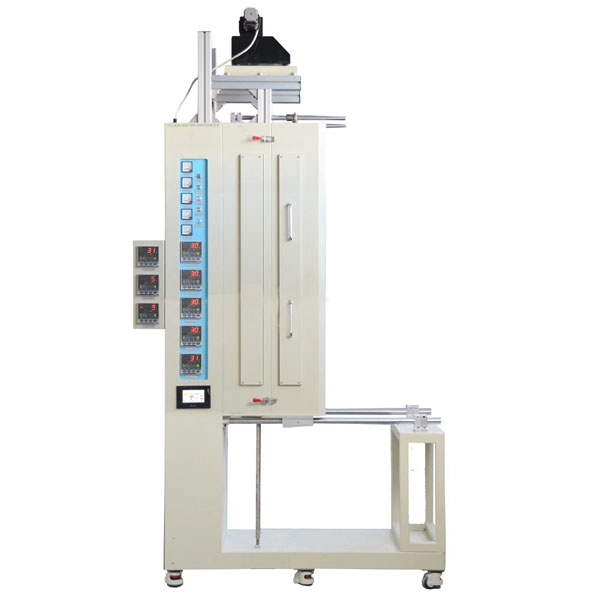

Model

TCHVTL1200C-VI60

TCHVTL1200C-VI80

TCHVTL1200C-VI100

Power

9  KW

Tube size (mm)

Dia 60(OD) X1600

Dia80(OD)X1600

Dia100(OD)X1600

Dimension (mm)

545X420X1670

545X420X1670

545X420X1670

Voltage

220V or 380V

Hanging wire

Equipped with 3 sets of 0.3mm thick Ni-Cr-Al suspension wire, which can withstand the highest temperature of 1100℃

Optional suspension wire that can withstand higher temperatures

Molybdenum wire: the highest temperature can withstand 1700℃

Platinum wire: the highest temperature can withstand 1600℃

The suspension wire can pass through the flange. If the furnace tube maintains a positive pressure, crystals can be grown in a protective atmosphere

For oxygen sensitive materials, the sample can be encapsulated in a small quartz tube

Motor & control

Adopt stepper motor system

• Use a 6"L x 4"W touch screen controller to control the rotation of the DC motor

• 3 programs can be set for ascent and descending speed

• Speed range: 1-500 nm/s (adjustable), accuracy: +/- 0.05%

• Total travel stroke: 450mm

• Motor power: 50W

Optional :

Adopt servo motor system

(The pulling speed is more uniform and stable, improving the quality of single crystal growth)

• Use a 6"L x 4"W touch screen to control the rotation of the servo motor

• 3 programs can be set for ascent and descending speed

• Speed range: 1-500 nm/s (adjustable), accuracy: +/- 0.05%

• Total travel stroke: 450mm

• Motor power: 50W

Heating element

    Resistance wire

Temp. controller

PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built-in over temperature alarm and protection allows for operation without an attendant.

Temperature accuracy: +/- 1 ℃

SCR

106/16E from Germany

Max. Temp.

 1200 ℃

Working temp.

 ≤1100 ℃

Heating rate

 ≤30 ℃/ Min

Suggest heating rate

≤15  ℃/ Min

Thermocouple

K type

Heating zone

205mm+205mm+205mm+205mm+205mm

Surface temp.

   ≤45℃

 Vacuum Level

· Limited by the pump ( pump is not included )

o 10E-5 torr can be reached by the molecular pump

o 10E-2 torr by a mechanical pump.

Warranty

One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty).
