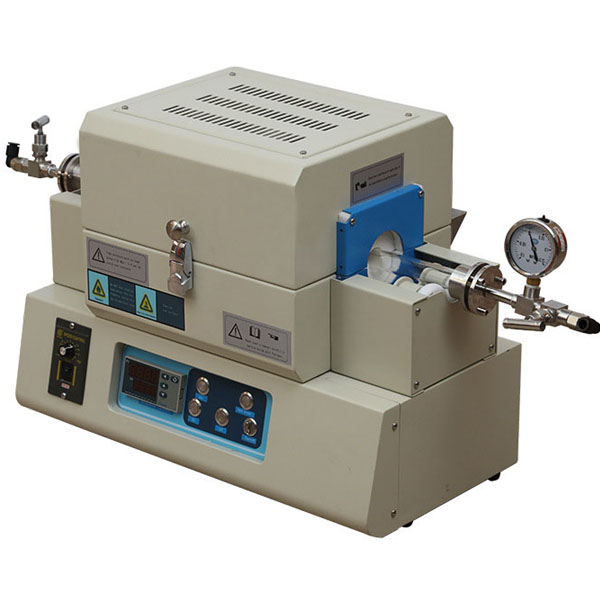

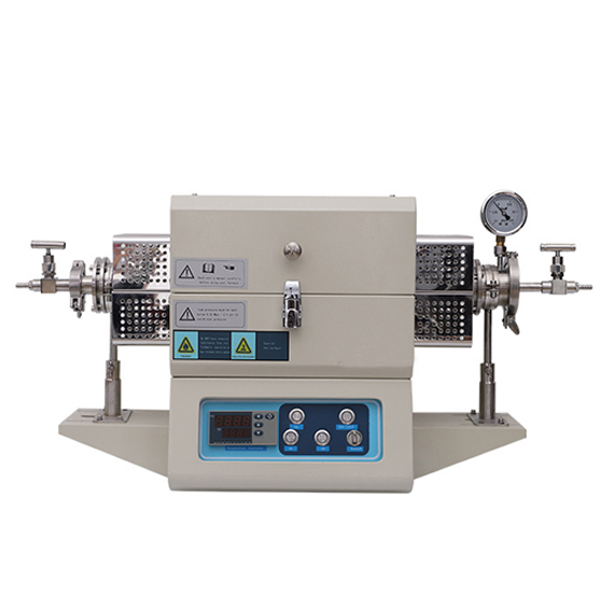

Furnace Construction |
ØDouble shell casing with two cooling fans. ØHigh purity Alumina fibrous insulation for max. energy saving. ØGear DC motor drives quartz tube with variable speed 0 - 5 RPM
ØSplit cover enables faster cooling and easy operation |
|
Max. Temperature |
1200 °C Max for < 2 hours |
|
Working temp. |
≤1100°C for continuously |
|
Heating Zone length |
8" (200 mm) heating zone |
|
Constant temp. zone: |
100 mm within +/-2oC |
|

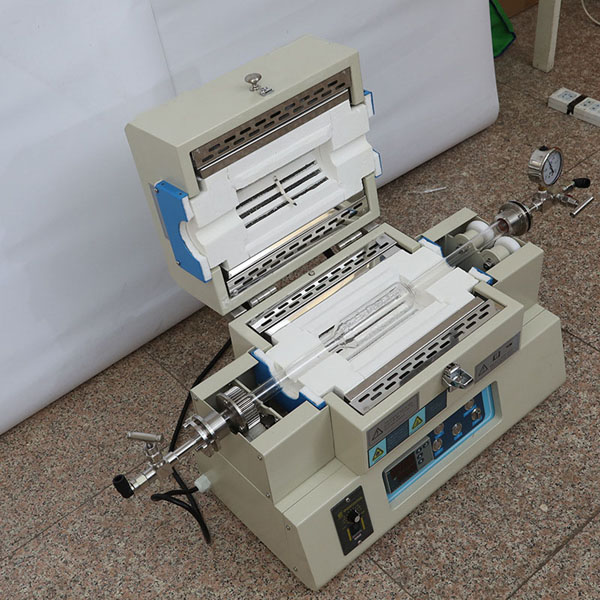

Processing Tube |
2" Fused quartz processing tube with mixing blade in center |
|
Gas Fittings |
Inlet Fitting: Elbow Push-in connector for tube; Outlet Fitting: Elbow Push-in connector for tube Option parts: If do not want plastic connector, please upgrade to Inline Swivel Head. |
|
Temperature Control |
PID digital temperature controller with 30 segment programmable, +/- 1°C |
|
Thermocouple |
K type Thermocouple |
|
Tube rotating Speed |
0 - 5 RPM variable |
|
Furnace tilt angle |
· No tilting function · You can add spacer at the bottom of furnace to tile furnace |
|
Chamber pressure |
4.5x10-2 torr (<0.1mtorr/s leaking rate if close all the valves to airtight the tube chamber) |
|
Power |
1.5 KW Max |
|
Voltage |
208 - 240V with 3000W Transformer single phase (30 A Breaker required) |
|
Warranty |
One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement at related products below.) |
|
Compliance |
CE Certified |
