Model

TCHRTL1200-R-60

  RTL1200-R-60

Power

3.5  KW

6 KW

Tube size (mm)

Dia 60(OD) X1200

   Dia120(OD)X1200

Dimension

580X370X1050mm

600X440X1100mm

Voltage

220V, 50/60Hz

Phase

Single phase

Max. Temp.

 1200 ℃

Working temp.

≤ 1100 ℃

Temp. controller

PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

Built-in over temperature alarm and protection allows for operation without an attendant.

Accuracy: +/- 1°C

Tube rotating Speed

 0 - 20 RPM variable

Rotary motor

 40W

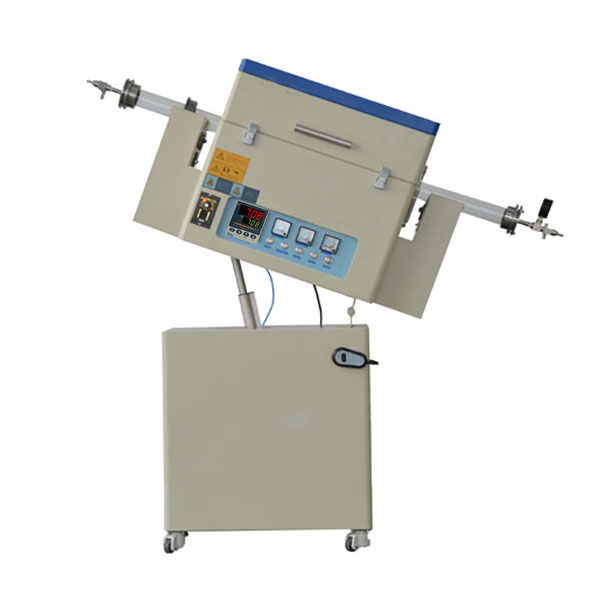

Furnace tilt angle

 0~30°

Heating rate

≤30 ℃/ Min

Suggest heating rate

≤15  ℃/ Min

Model

K type

Heating zone length

440mm

Power

4 Kw Max.

 Vacuum Level

· Limited by the pump ( pump is not included )

o 10E-5 torr can be reached by the molecular pump

o 10E-2 torr by a mechanical pump.

Warranty

One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty).
