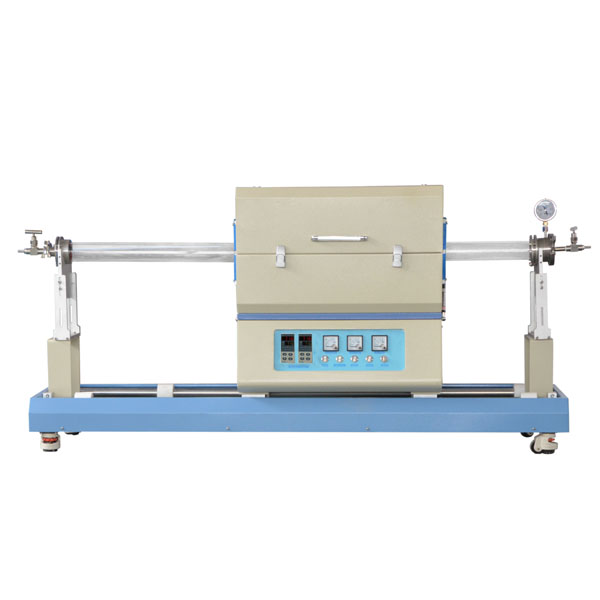

Model

RTP-TL1200-II-60

RTP-TL1200-II-80

RTP-TL1200-II-100

Tube size

60*1500mm

80*1500mm

100*1500mm

Dimension

1700X490X600mm

1700X490X600mm

1700X490X600mm

Power

3.5KW

Voltage

AC 208-240V Single Phase, 50/60 Hz

Max. Temperature

1200°C (<1 hour)

Continuous Temp.

≤1100°C

Heating& Cooling Rates

Heating Rate:

 15°C/sec (RT - 150°C);

 10°C/sec (150°C - 250°C);

  7°C/sec (250°C - 350°C);

  4°C/sec (350°C - 500°C);

  3°C/sec (350°C - 550°C);

  2°C/sec (550°C - 650°C);
  1°C/sec (650°C - 800°C);
 0.5°C/sec (800°C - 1000°C)

Cooling Rate:

15°C/sec (1000 - 950°C);

10°C/sec (950°C - 900°C);

7°C/sec (900°C - 850°C);

4°C/sec (850°C - 750°C);

2°C/sec (750°C - 600°C);
1.5°C/sec (600°C - 500°C);
1°C/sec (500°C - 400°C);
0.5°C/sec (400°C - 300°C);

Note:

The max heating and cooling rate is achieved by pre-heat one side of processing tube to the target temperature and then slide the furnace to the other side. You may choose to place the sample in the pre-heat area or not.

Heating Zone Length

205mm+205mm (two zones )

Constant Temp. Zone

100mm+100mm

Heating Elements

Resistance wire

Temperature Controller

· PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

· Built-in over temperature alarm and protection allows for operation without an attendant.

Temp. Accuracy

+/ - 1°C

 Vacuum Level

· Limited by the pump ( pump is not included )

o 10E-5 torr can be reached by the molecular pump

o 10E-2 torr by a mechanical pump.

Warranty

One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty).
