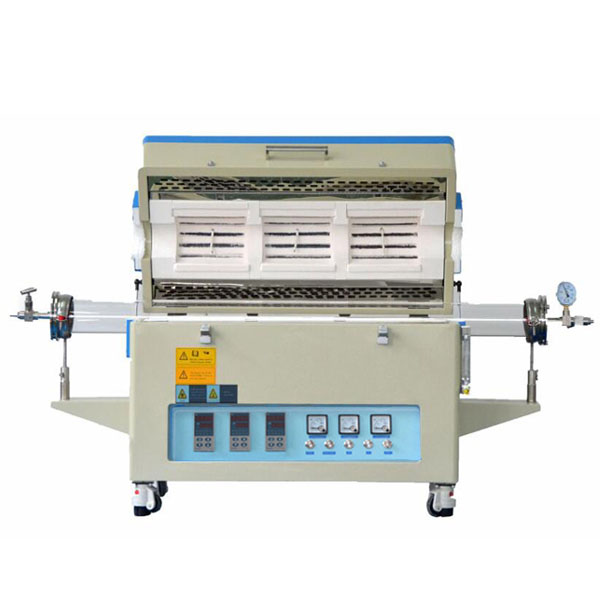

Model |
TCHTL1200-III-60 |
TCHTL1200-III-80 |
TCHTL1200-III-100 |
TCH-TL1200-III-150 |
|
Power |
5.4KW |
5.4KW |
5.4KW |
7.8KW |
|
Furnace tube (OD*L mm) |
60*1300mm |
80*1300mm |
100*1300mm |
150*1300mm |
|
Voltage |
220V , 50/60 HZ |
|||
|
phase |
Single phase |
|||
|
Heating element |
Resistance wire |
|||
|
Max. Temp. |
1200 ℃ |
|||
|
Working temp. |
≤1100 ℃ |
|||
|
Heating rate |
≤30 ℃/ Min |
|||
|
Heating zone length |
205+205+205mm |
|||
|
Thermocouple |
K type ( three thermoucouples installed) |
|||
|
Temp. controller |
· Three MTE certified Temperature controller with 30 programmable segments · Built in PID Auto-Tune function with overheating & broken thermocouple protection. · Over temperature protection and alarm allow for operation without the attendant. · +/- 1 ºC temperature accuracy. · Three K-type thermocouples (one for each zone). · RS485 Communications Port. Other kind temperature controller also can be designed with extra cost.
|
|||
|
Temp. controller accuracy |
+/- 1 ℃ |
|||
|
SCR |
106/16E from German |
|||
|
Surface temp. |
≤45℃ |
|||
|
Safety protection |
When the furnace is opened, the relay will automatically cut off the main power supply, effectively ensuring the safety of users |
|||
|
Vacuum degree
|
· Limited by the pump ( pump is not included ) o 10E-5 torr can be reached by the molecular pump o 10E-2 torr by a mechanical pump. |
|||
|
Warranty |
One year limited warranty with lifetime support. (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty) |
|||
