Model

TCHVTL1200-Q60

TCHVTL1200-Q80

Power

3.5  KW

3.5  KW

Tube size

Dia 60(OD) X1000mm

Dia 80(OD) X1000mm

Voltage

220V, 50/60Hz

phase

single phase

Heating element

                                               Resistance wire

Temp. controller

· 30 programmable segments for precise control of heating rate, cooling rate and dwell time.

· Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.

· Over temperature protection and alarm allows for operation without attendant(s).

· +/- 1℃ temperature accuracy.

· One K-type thermocouple.

Thermocuple broken protection

yes

Overheating protection

yes

Over current protection

yes

Temp. accuracy

+/- 1 ℃

SCR

106/16E from German

Max. temperature

1200 ℃ (Less than 1 hour)

Working temp.

≤1100 ℃

Max. heating rate

30 ℃/ Min

Suggest heating rate

≤15℃/ Min

Thermocuple

K  type

Heating zone length

440mm

Surface temperature

≤45℃

Electromagnet Sample Release Flange & Quenching

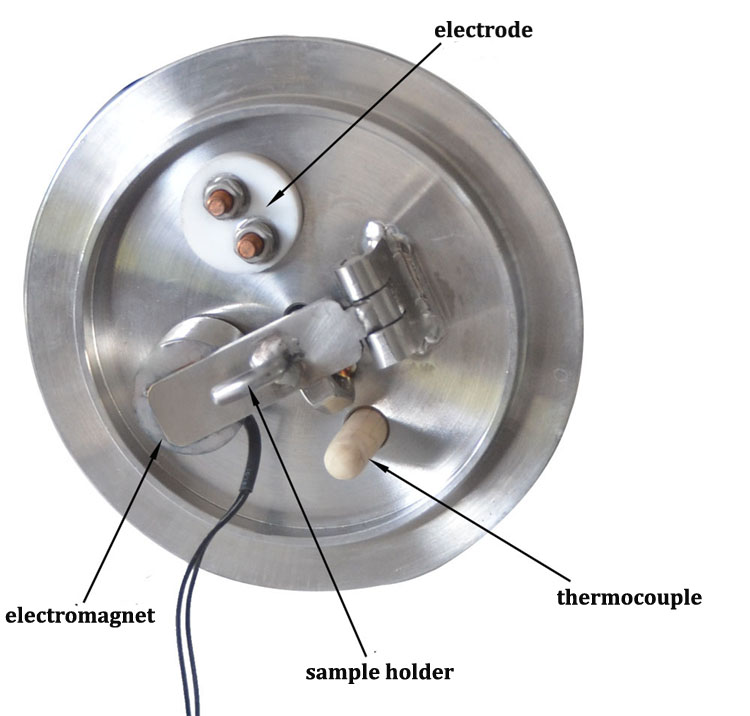

· Full automatic electromagnet sample release flange

· Hinged plate hooks the cable, which pulls the sample.

· Hinged plate drops when the electromagnet powers off. The sample and the cable fall into the quenching tank.

· Rings are available for hanging the tube block with cables.

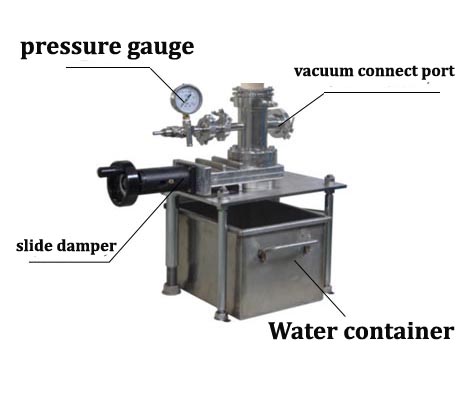

· Bottom flange is connected with a gate valve ( manual operated ) via adaptor

· The gate valve is connected with a quenching media container

· Caution: You must use ice water or cooled oil as quenching agent if quenching under vacuum.

Warranty

 One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty.)
