Model

TCH-RTL1200-RII-60

TCH-RTL1200-RII-120

Tube size(mm)

Dia 60(OD) X1000

Dia120(OD)X1000

Power

3.6Kw

4.5Kw

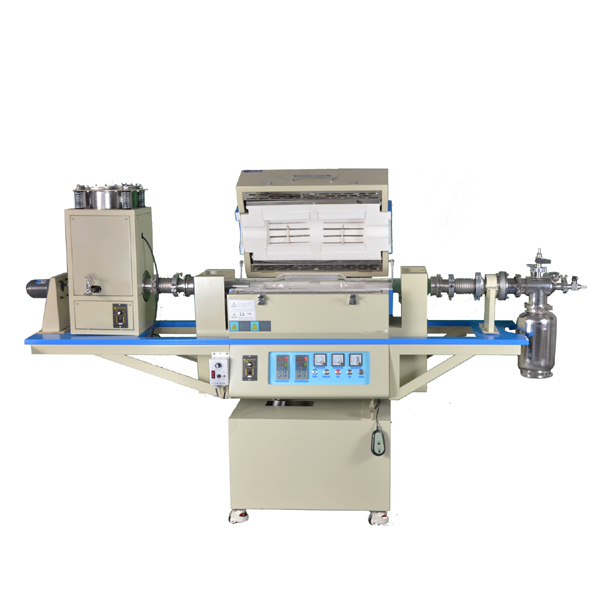

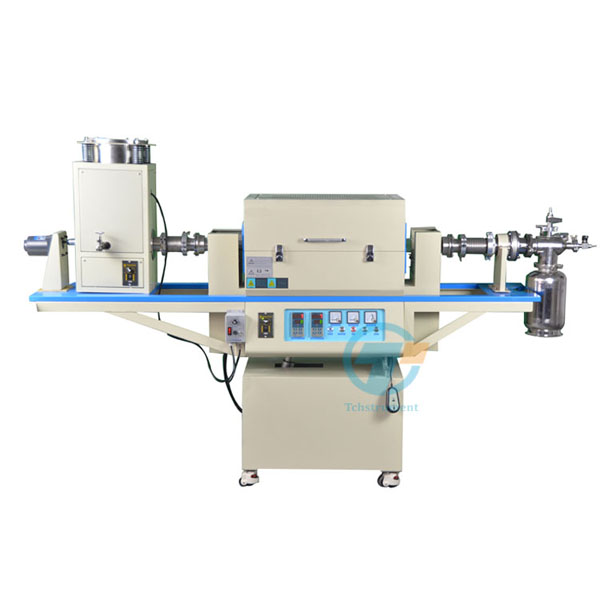

 Furnace Construction

· Double shell casing with three cooling fans

· High purity Alumina fibrous insulation for max. energy saving

· Gear DC motor drives quartz tube with variable speed 0 - 20 RPM

· The furnace can be tilted up to 30^o by electricity.

· Split cover enables faster cooling and easy operation

Automatic Feeding Furnace

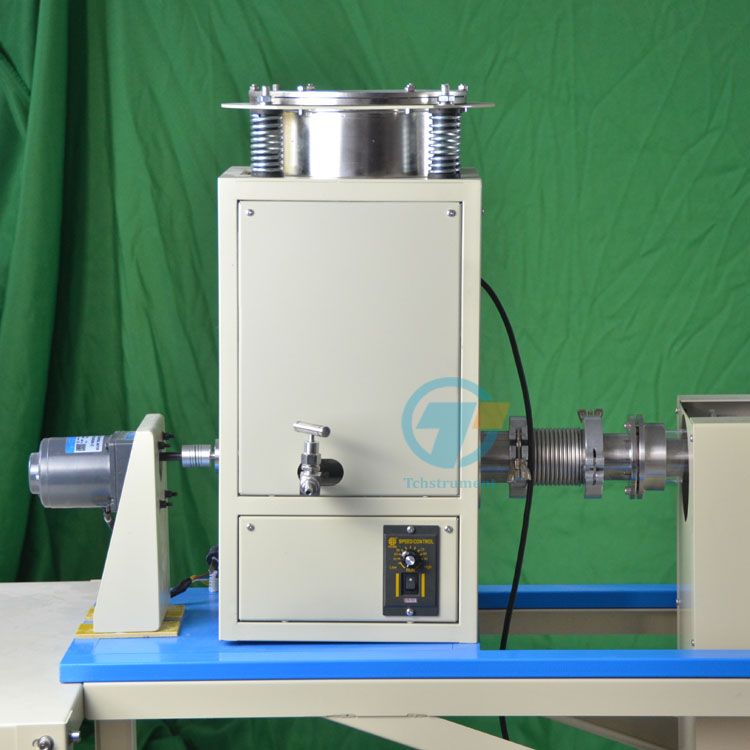

· The compact automatic powder feeder is mounted on the tiltable furnace via vacuum sealed The swivel assembly.

· Proper connection ensures uniform feeding rate and the tube rotation undisturbed under controlled atmosphere.

· Feed rate adjustable by the potentiometer knob, 97cm^3/min max.

· One stainless steel tank is installed on the other end of processing tube to gather the fired powder without exposure to air.

Heating Zone Length

· Two zones: each zone length 8" (200 mm), total 16" (400 mm) heating zone

· Constant temperature zone: 200 mm within +/- 1^oC if two zones at the same temperature.

 Max. Working Temp.

≤1100°C for continuously 1200 °C Max for < 2 hours

Temp. Controllers
 & Thermocouple

Two PID digital temperature controller with 30 segment programmable,  +/- 1°C

 Two K type Thermocouple

Tube Rotating Speed

 0 - 20 RPM variable

Furnace Tilt Angle

  0~30°

Chamber Pressure

 4.5x10-2 torr (<0.1mtorr/s leaking rate with all valves closed to maximize airtightness of the tube chamber)

 Power

  Furnace: 6KW Max in total
  Feeder: 200W Max

 Voltage

  Furnace: 208 - 240V single phase (30 A Breaker required)
  Feeder: 208 - 240V single phase

 Warranty

  One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty.)

Furnace Compliance

CE Certified
