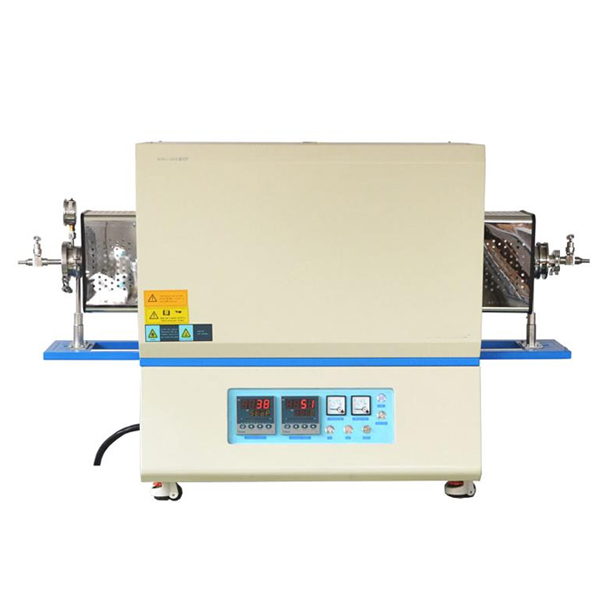

Model |
TCHTL1700-I |
TCHTL1700-II |
|
Tube size(mm) |
Φ60X1200 |
Φ80X1200 |
|
Power |
7Kw |
10Kw |
|
Max. temperature |
1700℃ |
|
|
Working temp. |
1600℃ |
|
|
Heating rate |
≤20℃/min suggest：≤10℃/min |
|
|
Heating zone length |
210mm+210mm |
|
|
Tube material |
High purity alumina tube |
|
|
Heating elements |
1800 MoSi2 Heating Element |
|
|
Thermocouple |
B type |
|
|
Surface temperature |
≤45℃ |
|
|
Temperature controller |
PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time. Built-in over temperature alarm and protection allows for operation without an attendant. Accuracy: +/- 1°C |
|
|
Voltage |
220V 380V, 50/60HZ |
|
|
Warranty |
One-year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty). |
|
