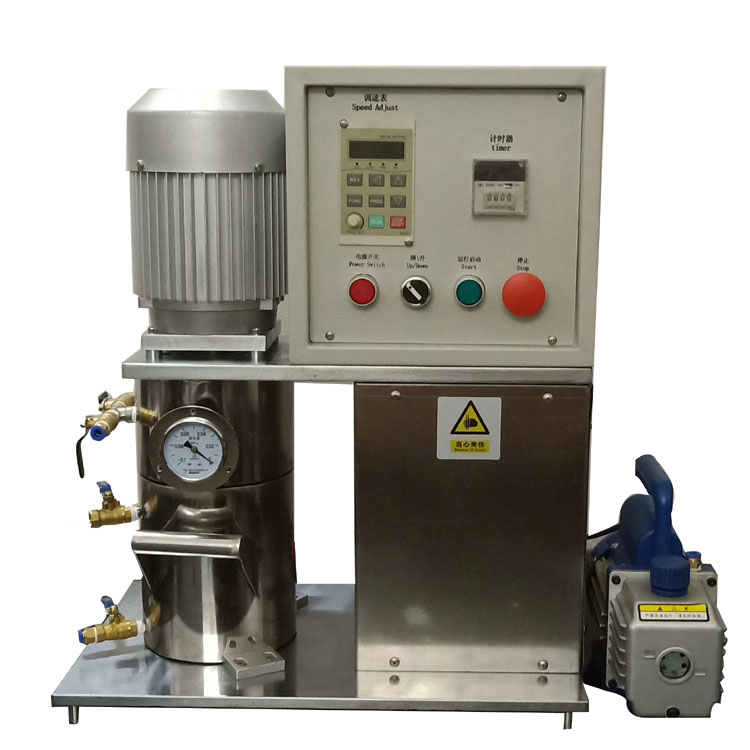

This machine is a high-efficiency device that integrates vacuum mixing and dispersing. It is suitable for the positive and negative electrode slurry mixing process during the lithium battery experiment, glue, chemical industry and other industries.
Product Features:
· Adopting industry-leading soft sealing technology, it can maintain -0.098Mpa state for more than 24 hours;
· Supported by double precision guide posts, the cylinder pushes the barrel to open and close which has the features if humanized design, precise and efficient;
· The container is made of high-quality 304 stainless steel. After being processed by a large horizontal lathe, it is polished by a precision automatic polishing machine to ensure high accuracy;
· Double-dispersed paddle design makes the material toss up and down and all around, so that the slurry mixes quickly and evenly;
· The stirring motor adopts gearbox frequency conversion adjustment, which can choose different speeds and torques according to different processes and different viscosities;
Specification
|
Model |
TCH-JB-01 |
|
Stirring speed |
0-1400 rpm; speed adjusted by inverter |
|
Container opening and closing method |
The upper cover is driven by a two-arm cylinder to lift. |
|
Inner dimension of the container |
Φ102mm (diameter) × 185mm (height) |
|
timing function |
can set the time arbitrarily 0-99 (H) |
|
Voltage |
204-240V,50/60HZ |
|
Power |
0.55KW |
|
Machine dimension |
600 ×500 × 300mm ( height × length × width) |
|
Net weight |
about 88kg |
