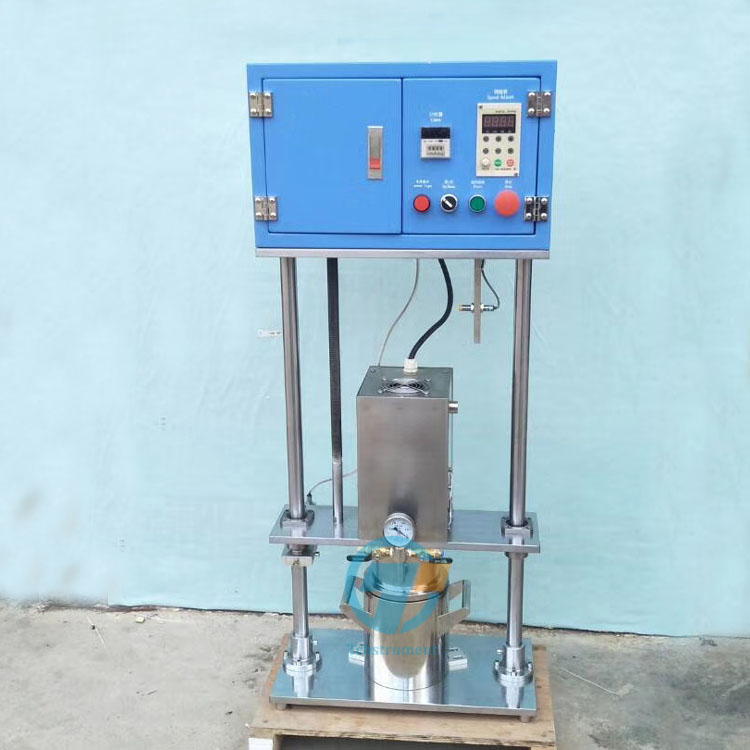

This machine is designed for making large batches (5 liters) of chemical compounds via blending and mixing in a single container under vacuum driven only by electricity. It is programmable in speed, time, and rotational direction, and has a stainless steel mixing tank implemented with water cooling to maintain an efficient mixing process.
This instrument is excellent for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum. The reduction of gas bubbles will result in better dispersion and uniformity of the processed materials.
Specification
|
Features |
· 5-liter, 304 stainless steel container with dual layer water cooling jacket. · Advanced sealing mechanism helps maintain vacuum pressure up to 12 hours. · Container is opened and closed by an electric motor; the need for an additional pneumatically driven device is eliminated from this operation. · Programmable controller for adjusting the time, speed, and rotational direction settings. |
|
Input Power Requirements |
· 208-240VAC single Phase, 50/60 Hz (built-in frequency converter to ensure compatibility with both frequencies) · 30A Max · AC Power plug is not included. |
|
Motor Output |
750 W ( 1 Hp) |
|
Rotor Rod Speed |
0 -1400 RPM variable |
|
Mixing Blade Speed |
10 - 110 RPM adjustable |
|
Lifting Mechanism |
Electric motor (no air compressor or pump needed ) |
|
Container & Blades |

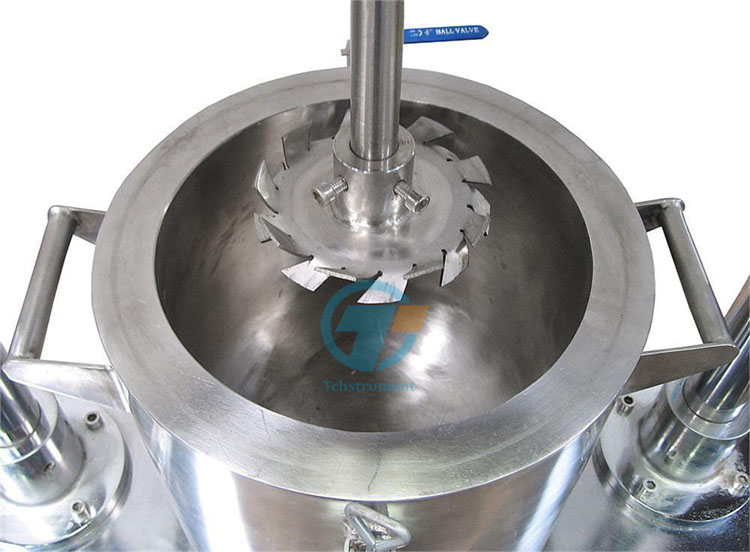

· Three different mixing blades are included for immediate use: 1. Helical Mixing Blade (120mm H x160 mm Dia.) 2. Propeller Mixing Blade 3. Turbine Mixing Blade · Mechanical Pressure Gauge and two 1/4'' gas inlet and outlet on the front for connection of gas source(s) - · Container capacity: 5 Liter. · This machine is suitable for wet blending and mixing only is not suggested for use with dry mixing or ball milling. |
|
|

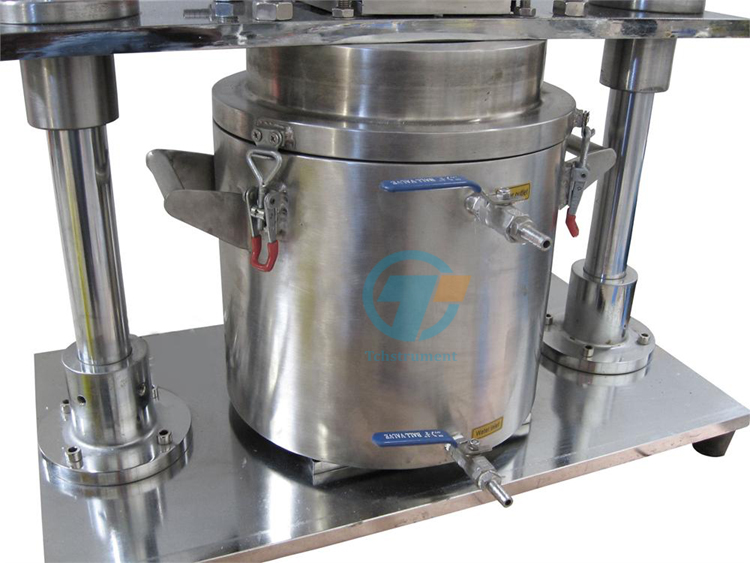

· 16 L/min water flow is required to cool mixing tank · 1/4'' water cooling inlet and outlet - connected to built-in cooling jacket - on the back of the mixing tank for water hose connection · A recirculating water chiller is recommended for saving water (not included) · Heatable container with precision temperature controller is available upon request at extra cost up to 200oC |
|
Vacuum Pump (Optional) |
· Vacuum pump is NOT included. Please order separately. · 120L/min Oillless Vacuum Pump · 156 L/m Double Stage Rotary Vane Vacuum Pump |
|
304SS Container Size |
270mm O.D. x 210mm I.D. x 230mm H |
|
Instrument Dimensions |
580mm(L) x 320mm(W) x 1340mm(H) |
|
Shipping Dimensions |
700mm(L) x 600mm(W) x 1500mm(H) |
|
Net Weight |
119 kg (262 lbs) |
|
Shipping Weight |
140 kg (310 lbs) |
|
Warranty |
· One year limited warranty with lifetime support · Rusting and damage due to improper storage conditions or lack of maintenance is not covered by warranty |
