Application

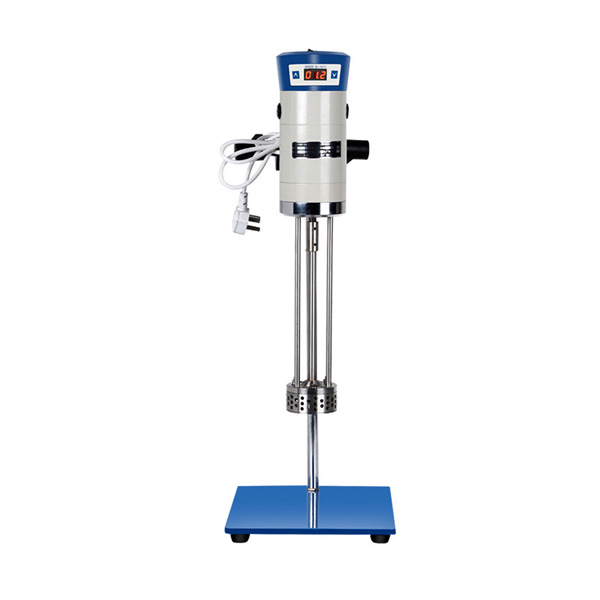

The laboratory high-speed shear-dispersing emulsifier is used for low .middle and high Viscosity mixing The pulverized particulate material is further shear emulsified in a liquid medium .The machine consists of a running state controller, a drive motor and a shear emulsification working head.
Features:
- The running state controller with the step less speed governor, JRJ300-SH use the touch type structure, the speed adjustment is convenient,and the data is correct;
- The drive motor is high-speed and with large output power, Safety design;
- The working head with high quality stainless steel material ,corrosion resistant;
- The working head is connected with the drive motor by a coupling, which is easy and flexible to disassemble.
Specification
Model |
JRJ300-SH |
Voltage |
220V 50HZ |
Input Power |
510W |
output Power |
300W |
Rotary Speed |
200-11000R/MIN |
Exterior Dimension |
250*650*720mm |
Capacity |
40L |
Working Diamter |
70mm |

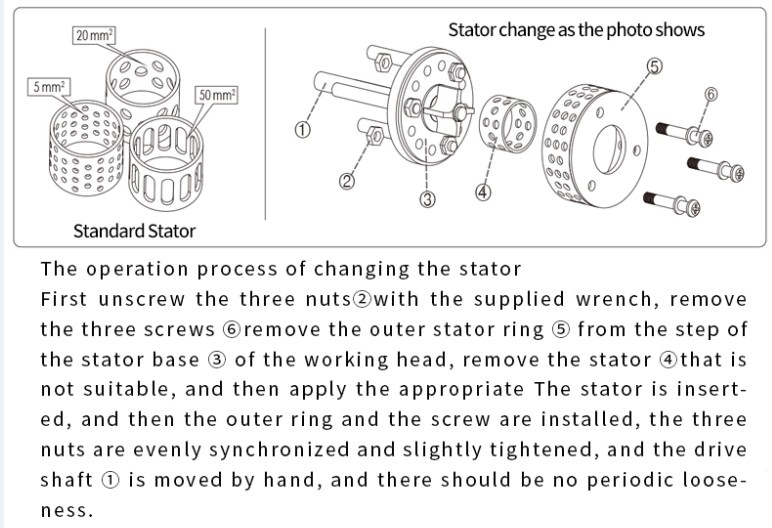

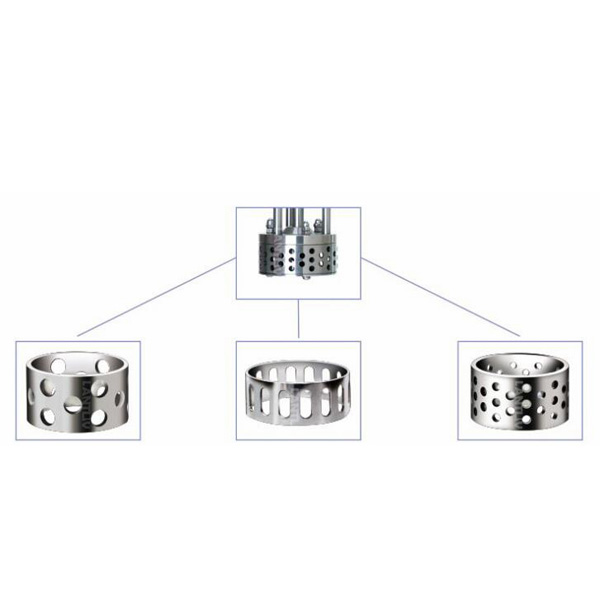

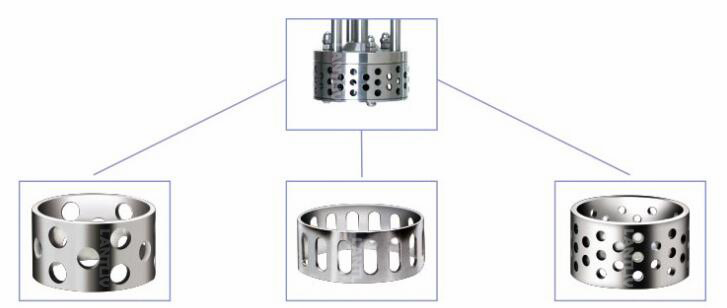

Stator type |
5mm2 20mm2 50mm2 |
