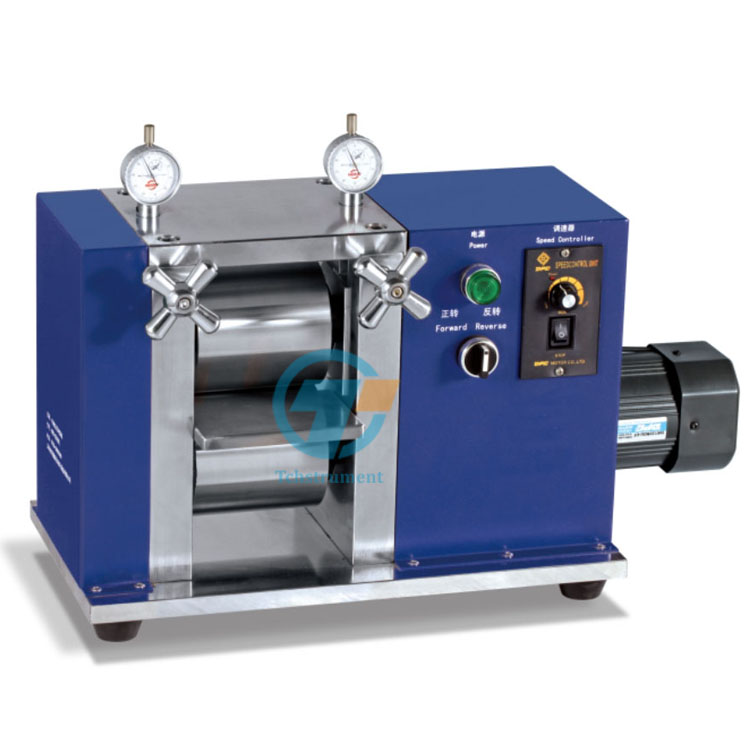

This machine is mainly used for electric rolling of battery materials in the laboratory, small amount of precious metals such as gold and silver, and non-ferrous materials such as copper and aluminum. It is especially suitable for thinning and increasing the density of lithium battery plates. This machine adopts gear transmission to realize the roll pressing, the rolling thickness can be adjusted, and the operation is convenient.
Specification:
|
Model |
TCH-MP100 |
|
|
Dimensions: 96mm(Dia.) x 100mm(W) Material: Made from hardened tool steel (HRC > 62) with Cr electroplated coating. With finish > 0.8 |
|
Rolling width |
0-100mm ( also can be design the size according to your need) |
|
Rolling press accuracy |
≤±0.005 |
|
Rolling press thickness |
0-2mm adjusted with Dial gauge |
|
Rolling press speed |
0-40mm/s adjustable |
|
Product Dimensions |
650 mm(L) x 280mm(W) x 300mm(H) |
|
Weight |
55kg (180 lbs) |
