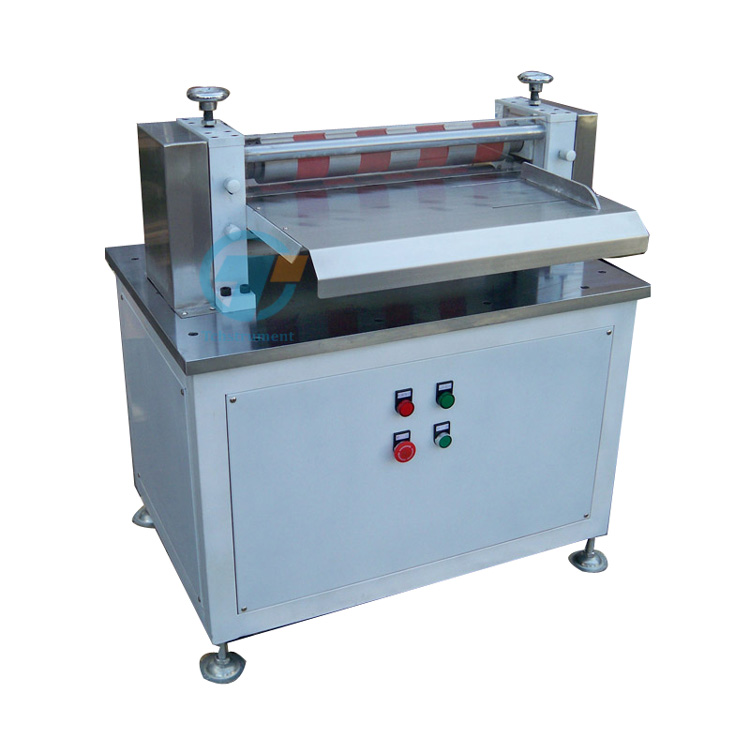

This Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of batteries and prismatic batteries in R&D laboratories and production line. It is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.
Specification:
Model
TCH-MSK-02
Source voltage
AC 204-240V,50/60HZ
Motor Power
0.75KW, 1400RPM
Reduction ratio
20:1
Slitting width
20-500mm ( adjustable)
Slitting thickness
100-300um
Hob diameter
Φ84 mm
Slitting speed
20m/min, Adjustable
machine dimension
L 850×W 620×H 1000(mm)
Net weight
about 200kg
Warranty
One year limited warranty and lifetime support
