Model |

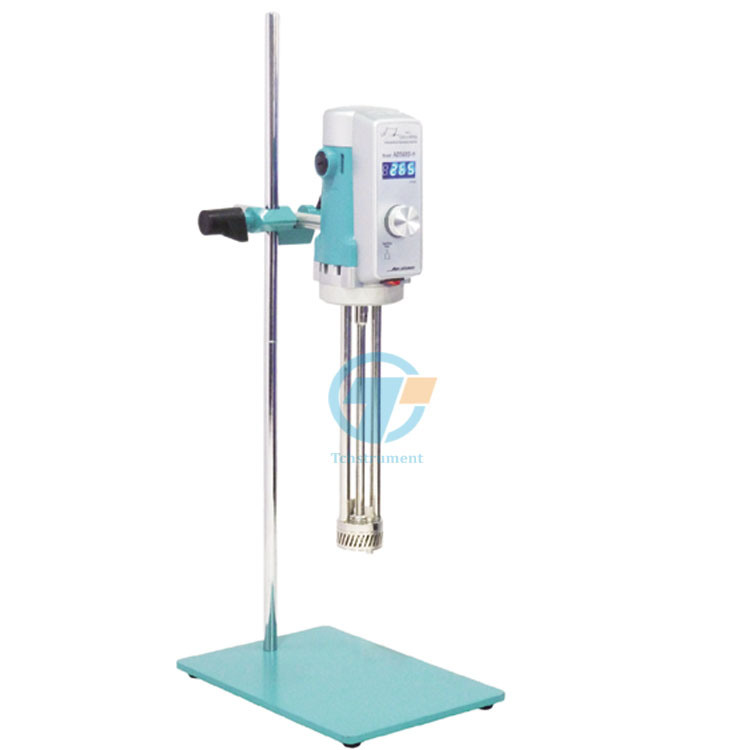

AE500S-H(70G) |
|
Rated voltage |
AC220V |
|
Rated frequency |
50/60Hz |
|
Input power |
850W |
|
Output power |
500W |
|
Rated torque |
34.1 N.cm |
|
Work mode |
S1 (continuous) |
|
Operating control mode |
combined control knob |
|
Speed adjusting range |
2000-14000rpm |
|
Speed control type |
stepless |
|
Timing control range |
1-1000 min |
|
Speed digital display |
x 10rpm |
|
Speed dynamic detection |
YES |
|
Speed memory function |
YES |
|
Overload protection function |
YES |
|
Work head maximum torque |
34N.cm |
|
Rotor maximum linear velocity |
20.5m/s |
|
Work head material |
SS304(stainless steel) |
|
Work head diameter |
70 mm |
|
Minimum/ Max. height immersed in liquid |
50mm/236mm |
|
Standard configuration of stator |
5mm2 / 20mm2 / 50mm2 |
|
Stirring capacity (H2O) ml |
500-40000ml |
|
Stirring processing viscosity |
8000mPa.S |
|
Allow environment temperature |
≤40℃ |
|
Allow relative humidity |
≤80% |
|
Size |
215 * 310 * 720mm |
|
Weight |
11kg |
