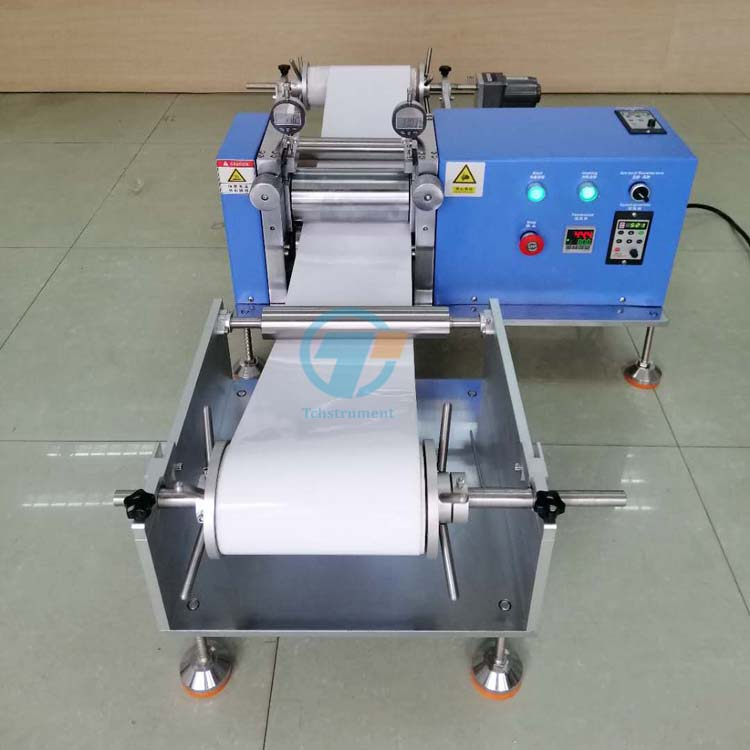

It is an automatic Roll to Roll system designed for continuous handling of flexible substrate materials . It enables the automatic R2R film calendering on table top calendering machines .

Features:

1) Using constant pressure and limited gap pressing method, it can continuously press intermittently coated battery pole pieces. The pressure is stable, the cylindricity of the roller is high, the sheet is uniform, and the deformation is small. Greatly improve production efficiency and reduce staff workload;
2) Unwinding with deviation correction tension control;
3) Rewinding with deviation correction tension control;

Specification

1) Roller size: φ100mm × 200mm;
2) Roller temperature: about 130 ° C
3) The temperature of the two rollers can be controlled independently and adjusted arbitrarily
4) Hardness of pressing roller surface: HRC62
5) Effective gap: 0-3mm adjustable
6) Roller speed: 0 ~ 6rpm, infinitely variable speed adjustment;
7) Maximum working pressure: 3KN;
8) Power requirements: 220V / 50Hz, power 3KW;
9) Total weight of equipment: about 150KG,
The load-bearing requirements of the equipment installation ground:> 0.3T / m2, and place a pad on the bottom of the equipment.
