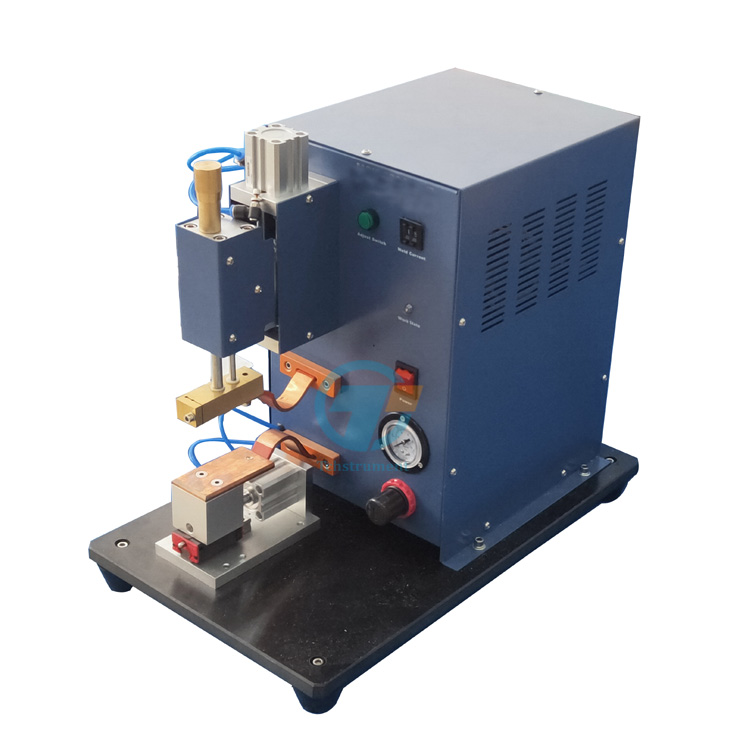

Single Point Pneumatic Welding Machine for Cylinder Cell Assembling

BASIC INFO

This is a Precise Pneumatic Single Point Welding Machine is specifically designed for professional Li-ion Battery Research. It is mainly used for welding the cylinder core's negative terminal (Nickel tab) to the bottom of the cylinder case. A Diameter 2mm x 180mm length welding needle is easily inserted into the cylinder case to weld at the bottom. This machine is controlled by the microcontroller,  which is very easy to operate and can provide stable performance.


Specification

Power Supply

220-240V, Single Phase 50/60Hz

Max. Power

10KW

Air Pressure Range

0.1 - 0.8 Mpa ( air compressor is required, please order at the related product)
Attention: If a gas cylinder is used instead of an air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.

Welding Current

0-99A

Welding Thickness

0.03 - 0.25mm

Operation Temperature

-20 - 40℃

Controller

Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding

Pressure

The pressure applied on the welding needle can be adjusted independently and easy to operate

Design

        · Unique Photoelectric switch design

        · Good appearance, small size and light weight

        · Welding spot looks beautiful,free spark, stable welding current

Weight

45 kg (100 lbs)

Product Dimensions

30.5cm(L) x 50.5cm(W) x 49cm(H)

Warranty

one year limited with lifetime support
