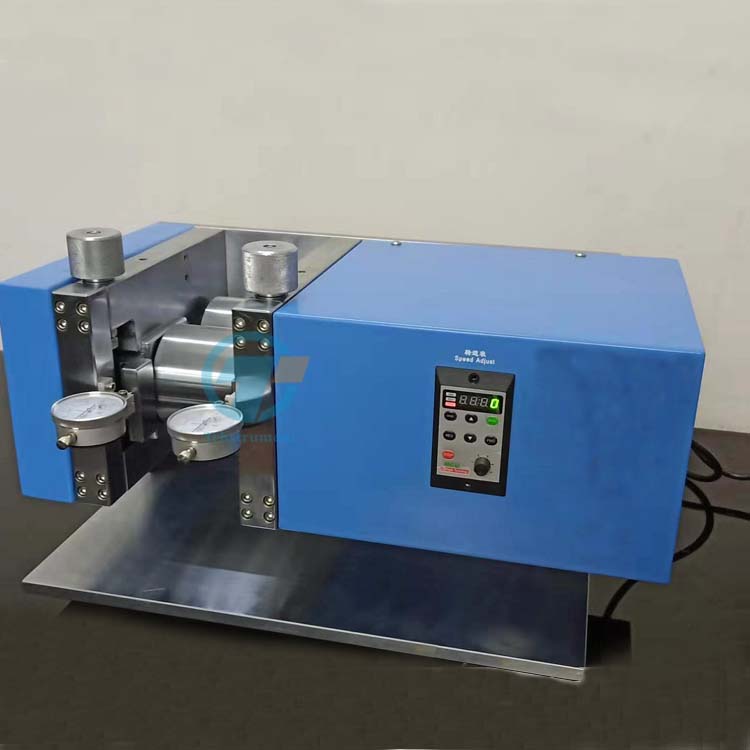

This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small amount of precious metals such as gold and silver, and non-ferrous materials such as copper and aluminum. Especially suitable for the thinning and increasing the density of clean energy material lithium battery plates. The machine adopts gear transmission to realize the pressing of the rollers, the rolling thickness can be adjusted, it is convenient to use, and the dial thickness can be controlled intuitively by the dial indicator.
Specification
|
Model |
TCH-MSK-HRP-02 |
|
roller size |
Φ100mm × 100mm |
|
Hardness of pressure roller surface |
HRC62 |
|
steel roller material |
imported 9CR2MO |
|
Roller cylindricity |
≤ ± 0.002mm |
|
Effective gap |
0-3mm adjustable |
|
Working speed |
infinitely variable speed, adjustable linear speed 0-4m / min; |
|
Roll surface finish |
Hard chrome plating will never rust. |
|
Working width |
maximum 100mm; (also can design the width according to your need) |
|
Quenching depth of roller surface |
5T |
|
Working power |
200W |
|
Voltage |
AC 204-240V,50/60HZ |
|
Dimension |
600mm (length) × 320mm (width) × 320mm (height) |
|
warranty |
1 year |
