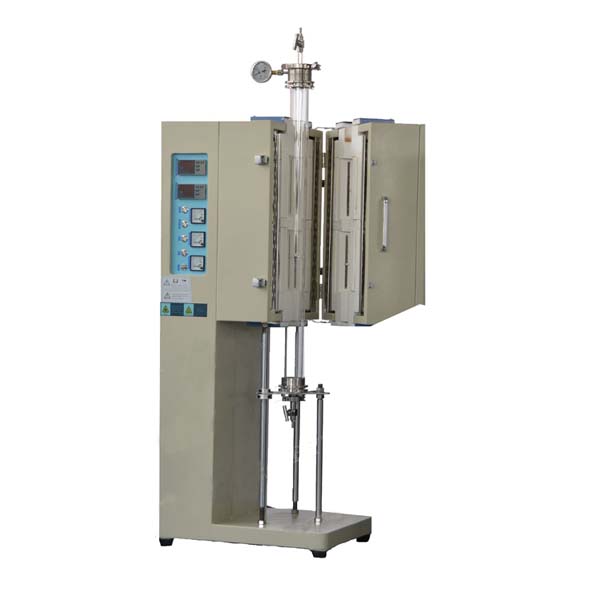

Model
|
TCHVTL1200-II-V60
|
TCHVTL1200-II-V80
|
TCHVTL1200-II-V100
|
|
Power
|
1.5KW
|
3.6KW
|
3.6 KW
|
|
Tube size
(OD)(mm)
|
Dia 50 X600mm
|
Dia60X1000mm
|
Dia80X1000mm
|
|
Furnace dimension
|
600X400X1400mm
|
600X400X1600mm
|
650X450X1600mm
|
|
Supply voltage
|
220V,50/60Hz
|
|
Phase
|
Single
|
|
Heating element
|
resistance wire
|
|
Temp. controller
|
PID automatic control with 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
Built-in over temperature alarm and protection allows for operation without an attendant.
Accuracy: +/- 1°C
|
|
Chamber materials
|
1. High quality high pure alumina polycrystalline fiber cured furnace with vacuum suction and filter molding.
2. Adopt Japanese technology to form.
3. The spacing and pitch of the resistance wire in the furnace are arranged according to the best thermal technology of Japan, and the temperature field is simulated by thermal software
|
|
Control precision
|
+/- 1 ℃
|
|
Trigger
|
Phase-shifted trigger
|
|
Electric appliance
|
Zhejiang chint
|
|
silicon controlled
|
106/16E SEMIKRON
|
|
maximum temp.
|
1200 ℃ (less than 1 hour)
|
|
rated temperature
|
≤ 1100 ℃
|
|
Heating length
|
205+205mm
|
|
Heating rate
|
≤30 ℃/ Min (adjustable), ≤15 ℃/ Min is recommended.
|
|
Thermocouple Type
|
K
|
|
Surface temp.
|
≤45℃
|
|
Open cover protection system
|
When the cover is opened, the relay will automatically cut off the main power supply to ensure the user's safety.
|
|
warranty
|
One-year limited warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty
|
